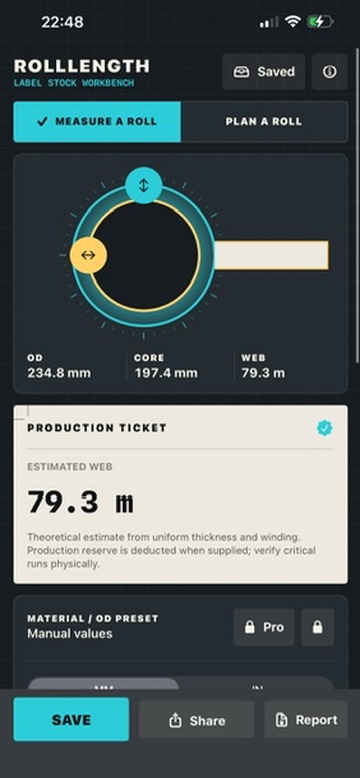

See the geometry
The live roll cross-section makes OD, core, and wound stock relationships clear while exact numeric fields keep entry precise.
MEASURE THE ROLL · PLAN THE RUN
Know what’s left without unwinding it.

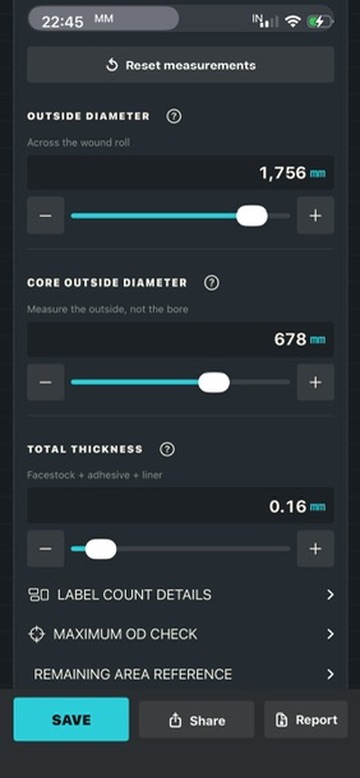

Turn outside diameter, core OD, and total media thickness into an estimated web length and maximum label count—right at the press, warehouse, or packing bench.
See the production ticketOUTSIDE DIAMETER127.0 mm
CORE OD25.4 mm
ESTIMATED WEB76.0 m
An instrument, not a generic calculator.

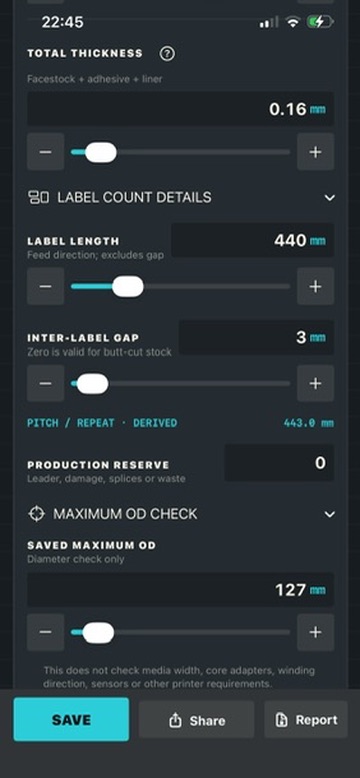

Label-specific estimates

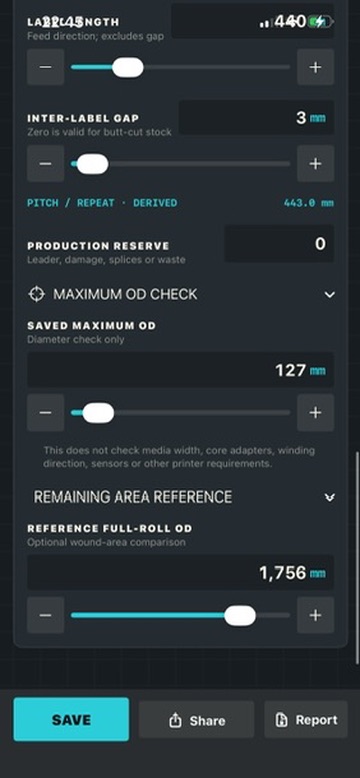

Enter label length and gap. RollLength derives pitch, floors the theoretical maximum, and deducts your optional production reserve.
Reverse-solve the roll
Start from required web length or usable labels and calculate the outside diameter you should expect.
PRODUCTION TICKET · EXAMPLE FIXTURE
76.0 m
ESTIMATED MAXIMUM LABELS1,434
RESERVE10
ESTIMATED USABLE1,424
Based on 127 mm OD, 25.4 mm core OD, 0.16 mm total thickness, 50 mm label length, and 3 mm gap.

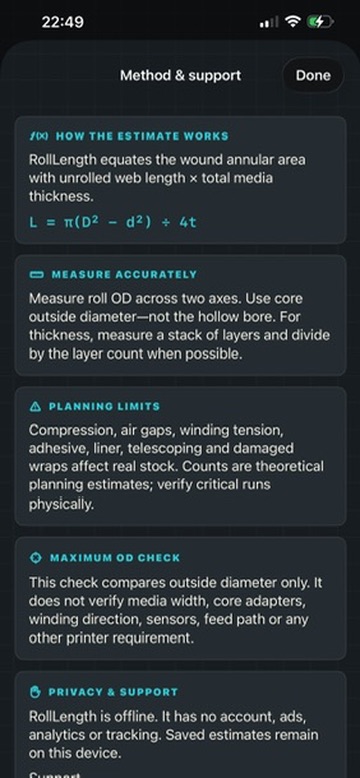

Planning estimates assume uniform thickness and winding. Verify critical production runs physically. Maximum-OD checks compare diameter only and do not verify overall printer compatibility.
Private by design.

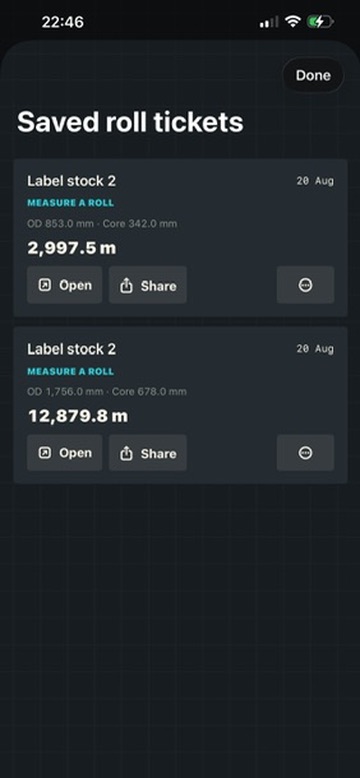

No account, advertising, analytics, tracking, or collected personal data. Your saved roll tickets and presets remain on your device.
